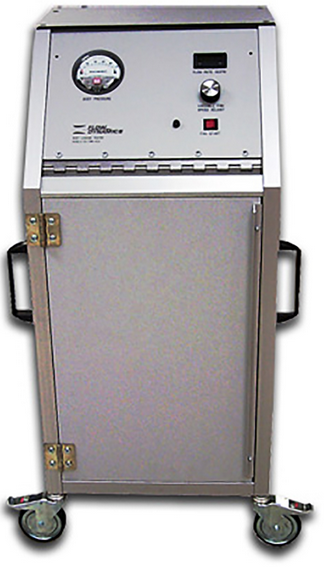

Badger Meter Body Leakage Tester Flow Dynamics 汽车漏风量检测仪

车身泄漏测试仪这个汽车车身测试行业标准用品,Flow Dynamics汽车车身泄漏测试仪(BLT)旨在对装配车间的车辆执行静态空气泄漏测试,这种便携式独立单元可实现自动化。

  • 商品编号:Badger Meter Body Leakage Tester汽车漏风量检测仪
  • 货  号:Badger Meter Body Leakage Tester汽车漏风量检测仪
  • 计量单位:
  • 所得积分:1900
  • 市场价: ¥228000.00
  • 销售价: ¥190000.00
  • 节省: ¥38000.00
购买数量:
  (库存9999+)
app hook

Description T

The Body Leakage Tester can determine the rate of air leakage into and out of a vehicle cabin under both pressure and vacuum conditions. Additionally, it can be used to test body components such as doors and windows with the use of custom adapters. All BLT units are calibrated against a primary standard air flow calibrator. This ensures a consistent, high accuracy reading during all body leakage measurements. A calibration check ring is provided to periodically verify the accuracy of the tester.

Mechanical Components:

• Air blower

• Differential pressure gage

• Flexible hose

• Calibration check ring

• Window adapter

• Inlet filter

• Pressure averaging wand

Electronic Components:

• Mass air flow sensor

• Digital flow rate display

• Flow computer

• Variable speed drive

• Electronic power supply





Specifications

Fluid: Air

Range: 5 – 400 SCFM

Differential Pressure: 0.1 – 1 INWC

Uncertainty: 2% Full Scale

Ambient Operating Temperature: 40° – 120° F

Badger meter body leakage tester automotive body leak tester 汽车漏风量检测仪

购买咨询

(已有1条咨询)
提问
非会员顾客 说: 17-06-26 19:59
scfm是什么单位呢?
回答
管理员[Nano004]  回复: 17-06-26 20:02
1scfm=0.3048m^3/m=28.3L/Min=0.472l/s!
