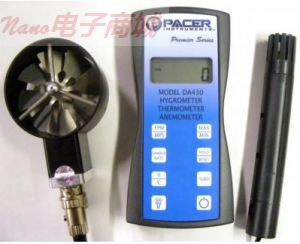

Pacer DA430叶轮风速仪

Humidity measurement from 5% to 95% relative humidity accurate to +/- 2%Pacer DA430 replaces old Pacer DA40H.

Industrial Grade Instrument and Probes for Harsh Environments

Features:

Rotating Vane Probe with built-in RTD temperature

Flow measurement from 40 to 7800 feet per minute accurate to +/- 1%

Temperature measurement from -4度 to 212度 accurate to +/- 0.3%

Industrial Grade Instrument and Probe for Harsh Environments

Large display with backlight

Easy to use keypad

Displays measurements in FPM, MPS, 度,C

Many other features such as sample averaging



Options Available:

Protective Boot and Splash-Proof Seal

USB communications

RS232 communications

Analog 0-5 Volt output

Additional probes

Custom cable lengths

Auxiliary RTD temperature probes



Choosing the right Rotating Vane Probe:

Air Probe AP275: 40 to 7800 ft/min(feet per minute), 0.2 to 40.00 m/sec (meters per second)

Air Probe AP100: 300 to 6890 ft/min (feet per minute), 1.5 to 35.00 m/sec(meters per second)

Calculated Air Volume Flow for DA410, DA420, DA430:

0.0 to 9999 ft3/min (cubic feet per minute)

0.0 to 9999 m3/hr (cubic meters per hour)

Accuracy:

AP275: +/-1.0% of reading +/-1 digit

AP100: +/-0.5% full scale + +/-0.75% of reading (which is not as accurate as +/- 1.0% of of reading)

For example: At 300 ft/min:

AP275 is accurate to +/- 3 ft/min.

AP100 is accurate to +/- 36.69 ft/min
