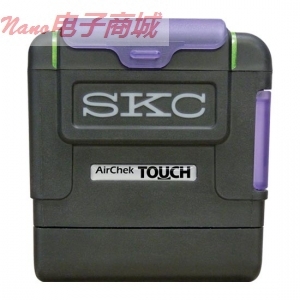

SKC 220-5000TC-S AirChek TOUCH触摸屏式空气采样泵

AirChek®TOUCH泵入门套件包括带锂离子电池组的泵,螺丝刀套件,标准充电座,电源线,3脚Tygon管和带有扎带的套环夹

  • 商品编号:SKC 220-5000TC-S AirChek TOUCH触摸屏式空气采样泵
  • 货  号:SKC 220-5000TC-S AirChek TOUCH触摸屏式空气采样泵
  • 品  牌:SKC
  • 计量单位:1套
  • 所得积分:115
  • 市场价: ¥13860.00
  • 销售价: ¥11550.00
  • 节省: ¥2310.00
购买数量:
  (库存9999+)
app hook

AirChek TOUCH触摸屏式空气采样泵

新airchek触摸式SKC采样泵

彩色触摸屏导航采样泵

提供流量范围5-5000毫升/分钟,高背压补偿你所有的IH的应用。很容易的连续,定时,和间歇采样不需要说明书。一个强大的锂离子电池提供长时间的运行。

超安静和坚韧的airchek触摸功能的屏幕保护罩,耐用的橡胶包覆成型的情况下,和皮带夹。充电,校准,和PC机的通信是容易与一体的。使用airchek触摸新Datatrac Pro软件便于泵和数据管理。

AirChek TOUCH触摸屏式空气采样泵

流量从5至5000毫升/分钟

5至500毫升/分钟需要使用低流量适配器

彩色触摸屏导航,方便编程

连续和间歇采样,定时,

calchek?校准

高背压补偿

强大的锂离子电池运行时间较长

校正流量变化的温度和大气压力

屏幕保护和安全

超静音

新Datatrac PC软件便于泵和数据管理

AirChek TOUCH触摸屏式空气采样泵技术参数

Flow RangeConstant flow from 1000 to 5000 ml/min
(low flow from 50 to 500 ml/min requires adapter)
Compensation Range
(back pressure capability)
5000 ml/min at 20 inches water back pressure
4000 ml/min at 30 inches water back pressure
3000 ml/min at 40 inches water back pressure
2000 ml/min at 50 inches water back pressure
1000 ml/min at 50 inches water back pressure
Flow Control SystemPatented* isothermal, corrects for changes in back pressure, temperature, and atmospheric pressure
PowerRemovable rechargeable Lithium-ion (Li-Ion) battery, 7.4 V 2.6 Ah, 19.24 Wh or AC using charging cradle
Run Time20 hours at 2000 ml/min?
10 hours at 5000 ml/min?
Indefinite run from charging cradle
Charging Time
(varies with battery capacity and level of discharge)
Approximately 3 hours
AccuracyFlow control: ± 5% of set-point after calibration to desired flow
Atmospheric pressure: ± 0.3 in Hg
Temperature: ± 1.0 C
Temperature RangesOperating: 32 to 113 F (0 to 45 C)
Charging: 32 to 113 F (0 to 45 C)
Storage: -4 to 113 F (-20 to 45 C)
Humidity RangesOperating: < 95% RH, non-condensing
Storage: < 95% RH, non-condensing
AltitudeCorrects flow for chages in temperature (32 to 113 F/ 0 to 45 C) and ambient pressure up to 15,000 feet above and down to 4,500 feet below sea level
Display/parameters

Color LCD/real-time flow rate, ambient temperature, ambient pressure, accumulated volume, elapsed time

User InterfaceResistive touch screen with auto-dim and locking options
Sound LevelAverage 51.7 dB at 3-ft (1-m) distance using a 37-mm 0.8-μm MCE filter cassette
Dimensions4.1 x 3.7 x 2.8 in (10.4 x 9.4 x 7.1 cm)
Weight19.4 oz (550 gm)
Certifications
  • Intrinsic safety: UL class I, Div. 1, Groups A, B, C, and D; Class II, Div 1, Groups E, F, and G; Class III, Div. 1, hazardous locations when used with SKC battery pack model P75718; T-code T3C. Exia; Class I, Zone 0 Gp IIC (SKC Cat. No. 220-5000TC)
  • RoHS compliant
  • CE Marked
Case MaterialPolycarbonate with rubberized anti-static overmolding
*U.S. Patent No. 5,892,160
?Tested using 37-mm 0.8-μm MCE filter with new pump and battery. Pump performance may vary.
