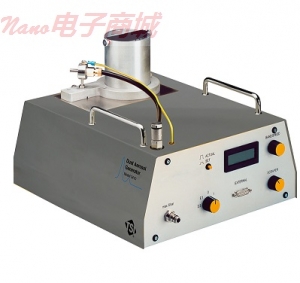

DUST AEROSOL GENERATOR TSI 3410粉尘气溶胶发生器

美国TSI 3410粉尘气溶胶发生器是上海汇分电子独家代理产品,直销电话,13916696061,价格有优势

  • 市场价: ¥0.00
  • 销售价: 面议
购买数量:
  (库存9999+)
app hook

PRODUCT DETAILS

The Dust Aerosol Generator Model 3410 comes in two versions that differ in the way the powder is fed to the disperser.

Model 3410U is for poorly flowing powders at low dosing rates (>50 mg/m 3 ). Here the powder is continually poured onto a metal ring where excess material falls off the side and back into the reservoir.

Model 3410L meters powder using a moving toothed belt. The well-defined spaces between the teeth ensure a constant and reproducible supply of powder and achieve mass concentrations of 0.5 to 160 g/m 3 .

Both versions disperse the powder via an ejector nozzle with ceramic inlay to make it more resistant against abrasive material. Shear forces in the ejector nozzle disperse and de-agglomerate particles. In both models the reservoir can be refilled while in operation to accommodate any required dosing interval.

APPLICATIONS

Instrument calibration and validation

Aerosol research

Tracer particles for laser velocimetry LDV, PIV, V3V (seed particles)

Inhalation and toxicology studies

Filter Testing

Dust holding capacity tests

FEATURES & BENEFITS

Generation and de-agglomeration of dry particles as small as 0.2 µm

Low (50 mg/m3 ) to high (160 g/m3 ) mass concentrations

Constant dosing independent of fill level in reservoir

Modular design, different feeding and dispersion units available

Dry powder generation even in humid environments

Model Particle size range (µm) Particle concentration Nominal flow rate (L/min) Note

3410U 0.2 to >100        50 mg/m3 to 20 g/m3 8 to 35                         Refill during operation. Cover to keep dust dry.

3410L 0.2 to >100        0.5 to 20 g/m3 25 to 67                         Refill during operation. Cover to keep dust dry.
