ThermoProbe TP7C-075-SW-SM 热电阻温度计

ThermoProbe TP7C-075-SW-SM 热电阻温度计

精确的温度测量散装液体储罐的本质安全的温度计

危险玻璃温度计的理想替代品

可靠和稳定的RTD传感器技术

精确度±0.2°F从32到200°F（0到100°C）

易于使用面板控制，校准和调整

电缆标记，每5英尺

包括4点NIST可溯源校准报告

崎岖的测温探针设计、现场使用便携式精密数字体温计,涉及volume-temperature测量石油和化工产品。方便的设计允许在电缆探头便于检索，并且无需使探针与表面带多个读数。典型的应用包括监护权转移，储罐，管道，船舶，轨道车，驳船，油罐车和检验系统。

本质安全型仪表制造的材料都是免疫石化和无火花都。探针组件构造有一个非常灵活的，静电消散，芳族聚酰胺纤维增强，不粘电缆和不锈钢组成。

大液晶显示温度，加上箭头指示的温度读数的方向和是否稳定性已经达到。稳定的温度可以在众多的液位正在运行的平均记录，后来显示的记录。先进的功能，通过一个用户友好的功能菜单，包括最小/最大/平均值读，读出诚信，光敏控制的背光源，测量可选择（°F /°C）单元，电池状态，并自动关闭。

TP7C型号采用了高强度的塑料外壳和一个内置的卷轴与探头电缆的快速和容易检索。

包含项目：

2节AA电池和制造商提供的NIST可溯源校准报告。

产品规格
产品类型	热电阻温度计
解析度	0.01
准确性	±0.2°F从32到200°F±0.5°F从200到400°F±0.1°C从0到100°C±0.3°C从100到200℃下
最低温度（ºF）	-40
最低温度（ºC）	-40
最高温度（ºF）	400
最高温度（°C）	204
显示	是
符合CE认证	是
探头（含）	是
低电量指示灯	是
电池寿命	百小时
功率	电池
尺寸	14x8x5英寸
品牌	测温
出厂编号	TP7C-075-SW-SM
型号	TP7C-075-SW-SM
商标	TP7C

Intrinsically safe thermometer for accurate temperature measurement in bulk liquid storage tanks

Ideal alternative to hazardous glass thermometers

Reliable and stable RTD sensor technology

Accuracy ±0.2°F from 32 to 200°F (0 to 100°C)

Easy to calibrate and make adjustments using faceplate controls

Cable marked every 5 feet

Includes 4-point NIST traceable calibration report

The ThermoProbe are designed as rugged, field-use, portable precision digital thermometers, involving volume-temperature gauging of petroleum and chemical products. Convenient design allows for easy retrieval of the cable probe and eliminates the need to bring the probe to the surface to take multiple readings. Typical applications include custody transfers, tanks, pipelines, ships, railcars, barges, tanker trucks, and proving systems.

Intrinsically safe meters are manufactured of materials which are both immune to petrochemicals and are nonsparking. The probe assembly is constructed with a very flexible, static-dissipating, aramid fiber reinforced, nonstick cable and stainless steel components.

Large LCD displays temperature, plus arrows indicate the direction of the temperature reading and whether stability has been reached. Stabilized temperatures can be logged at numerous liquid levels for a running average and later displayed for documenting. Advanced features, accessible through a user-friendly menu, include Min/Max/Avg reading, readout integrity, photosensor-controlled backlight, selectable (°F/°C) unit of measure, battery status, and automatic shut-off.

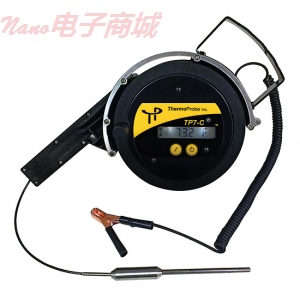

Model TP7 features a high-impact plastic case and a built-in reel for fast and easy retrieval of the cable with probe.
What's Included:
2 AA batteries and NIST traceable calibration report supplied by manufacturer.

Specifications
Product Type	RTD Thermometer
Resolution	0.01
Accuracy	±0.2°F from 32 to 200°F ±0.5°F from 200 to 400°F ±0.1°C from 0 to 100°C ±0.3°C from 100 to 200°C
Min temperature (º F)	-40
Min temperature (º C)	-40
Max temperature (º F)	400
Max temperature (º C)	204
Display	Yes
CE Compliance	Yes
Probe(s) included	Yes
Low battery indicator	Yes
Battery life	100 hours
Power	Battery
Dimensions	14x8x5 inches
Brand	ThermoProbe
Manufacturer number	TP7C-075-SW-SM
Model	TP7C-075-SW-SM
Make	TP7C
