美国Monarch DC6-1-12-0-0-0-0无纸记录仪

12 universal inputs, 6 math channels, 100/240 Vac, 512MB internal memory

12个通用输入，6个的数学渠道，100/24​​0 VAC，512MB内部存储器

再没有像DataChart 6000这样的数据记录仪了！

6或12个通用输入

多达4个脉冲/频率输入

6或12路继电器输出

可联网使用标准的以太网端口

IP65/NEMA4额定前面板

车载媒体驱动器-压缩闪存，USB（记忆棒，外置驱动器等），智能数字（SD）

触摸屏控制

触笔直接在屏幕上的图表注释

红外端口

内置OPC服务器

内置电子邮件客户端

DC6000是最先进的纸记录系统-包括最新的测量，通信，接口和工艺技术，采用了高对比度的5.6''彩色有源矩阵TFT液晶显示触摸屏。

如果你愿意用你的手指或内置手写笔，可轻松地进行数据录入和系统导航。一个直观图像驱动菜单轻松引导您设置和控制屏幕。显示生成器功能使得设置自定义屏幕极其简单。设计多达50个自定义显示含有各种组合的指示类型类型，如水平和垂直条形图，大和小的数字指示和水平或垂直的趋势。屏幕上的帮助是可以随时通过整个菜单系统帮助您设置和使用。存储数据时，DC6000非常灵活。数据可以存储到内部非易失性闪存RAM或任何可用的存储驱动器，包CompactFlash™和USB。

可编程记录启动和停止时间，允许用户在启动和停止记录设定时间间隔。数据也可以存储到通过以太网使用可选的软件的远程电脑上。此外，内置的OPC服务器允许任何符合OPC标准的客户端软件来连接，通信，检索数据。

DC6000采用多层安全，以保护存储数据的完整性。所有数据都存储在一个加密的二进制格式的防止数据的篡改，并最大限度地压缩。前访问介质门是上锁的，以防止未经授权的访问，内部移动存储介质。使用记录设置菜单，用户可以选择哪些渠道来记录，样品储存率，是否记录报警和/或事件，并开始/停止记录会话的时间和日期。在此菜单中选择的数据文件的储存位置，以及与该数据文件名 ​​。用户还可以设置开始或停止记录报警级别或外部触发输入装置

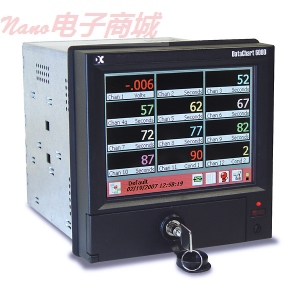

The DataChart 6000 is like no other paperless recorder available!

6 or 12 universal inputs

Up to 4 pulse/frequency inputs

6 or 12 relay outputs

Networkable using standard Ethernet port

IP65/NEMA4 rated front panel

Onboard media drives - CompactFlash™, USB (Memory stick, external drive etc.), Smart Digital (SD)

Touch screen control

Direct on-screen chart annotation with integral stylus

Infrared port

Built-in OPC server

Built-in E-mail client

The DC6000 is the most advanced paper recording system available - incorporating the latest in measurement, communication, interface and process technologies, utilizes a high-contrast 5.6'''' color Active Matrix TFT LCD display with a rugged touch screen.

Use your finger or the onboard stylus, if you prefer, to easily perform data entry and system navigation. An intuitive icon-driven menu guides you through easy to follow setup and control screens. The Display Builder feature makes setting up custom screens extremely simple. Design up to 50 custom displays containing various combinations of indicator types such as horizontal and vertical bar graphs, large and small digital indicators and horizontal or vertical trends. On-screen help is available throughout the menu system to assist you anytime during setup and use.

When it comes to storing data, the DC6000 is extremely flexible. Data can be stored to the non-volatile internal flash RAM or any of the available storage drives including CompactFlash™ and USB provided there is media present.

Programmable record start and stop times allow the user to start and stop recording at predetermined intervals. Data may also be stored to a remote PC via Ethernet using the optional Exhibitor Software. In addition, the built in OPC Server allows any OPC compliant software client to connect to, communicate with and retrieve data.

The DC6000 utilizes many layers of security to protect the integrity of your stored data. All data is stored in an encrypted binary format which

prevents data tampering and maximizes compression. The front access media door is lockable to prevent unauthorized access to the internal removable storage media.

Using the Record Setup menu, the user can select which channels to record, the sample storage rate, whether to record alarms and/or events, and the start/stop time and date for the record session. The location of the data file is selected in this menu along with the data file name. The user can also configure the unit to start or stop recording on an alarm level or an externally triggered input.

产品规格
产品类型	无纸记录仪
通道号	6
符合CE认证	是
型号	DC6-1-12-0-0-0-0
生产编号	DC6-1-12-0-0-0-0
功率	100-240 VAC
品牌	Monarch

Specifications
Product Type	Paperless Recorders
No. of channels	6
CE Compliance	Yes
Model	DC6-1-12-0-0-0-0
Manufacturer number	DC6-1-12-0-0-0-0
Power	100-240 VAC
Brand	Monarch
