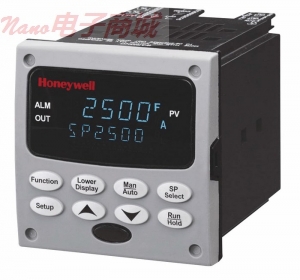

Honeywell DC2500EB0A0020000000000 温度控制器

Honeywell DC2500EB0A0020000000000 温度控制器

新一代工业通用数字控制器（UDC）

IP66和NEMA 4X级面板允许控制器用于冲洗应用

自整定III ^​​™模糊逻辑编程

精确度+ / - 0.25％满量程，16位分辨率

可在1/4-DIN规模

这些微处理器为基础的控制器是新一代的UDC控制器，并提供了高度的功能性和可靠性。调节温度在各种应用，包括炉，烤箱，环境试验箱，包装机械，塑料加工及更多的理想选择。
特点诊断功能监控条件下的热电偶，以确定它是否是良好的，失败的，或即将发生的故障的危险。
加热器断路器报警输出电路不断检查，确保加热器没有失败。
自整定III ^​​™软件与模糊逻辑抑制超调，真正的即插即用和播放的调谐算法调整双工控制的加热和冷却侧
通用电源。供应涵盖90至264 VAC，50/60 Hz，这符合全球标准交流电压的电压范围，
可以配置为两个本地设定值或一个地方和一个远程设定点的设置点。（型号89556-40至89556-43）
PV热启动允许，控制器初始化本地设定点在目前的PV值时，电源功率损耗的情况下启动。
双集微调：可以选择配置的PID参数自动根据PV或SP值。
第二 ​​个输入选项提供了第二个线性电压或电流输入。
提示双行LED显示多语言组态能力。上一个4字符显示屏和6个字符，14段字母数字显示。
高/低限控制器（型号89556-44）的目的是提供一个安全切断和可选的报警。锁存继电器输出被激活时工艺参数超过或低于所需的值，必须手动重置进程能够继续下去之前提供故障安全截止。特点通用输入和FM认证。
这些产品或其他形式可供选择，特殊订货控制器的更多信息，请致电我们的应用专家。

Next generation of industrial universal digital controllers (UDC)

IP66- and NEMA 4X-rated faceplate allows the controller to be used in washdown applications

Accutune III^™ fuzzy logic programming

Accuracy of +/- 0.25% full-scale, 16-bit resolution

Available in 1/4-DIN size

These microprocessor-based controllers are the next generation of UDC controllers and offer a high degree of functionality and reliability. Ideal for regulating temperature in a variety of applications including furnaces, ovens, environmental chambers, packaging machinery, plastic processing and more.
Features Diagnostic feature monitors the condition of the thermocouple— to determine whether it’s good, failing, or in danger of imminent failure.
Heater breaker alarm continuously checks the output circuit to ensure the heater has not failed.
Accutune III^™ software with fuzzy logic overshoot suppression, and true plug-and-play tuning algorithm to tune both the heat and cool side of a duplex control.
Universal power supply covers voltage range of 90 to 264 VAC, 50/60 Hz, which conforms to the standard AC voltages found worldwide.
Set points that can be configured for either two local setpoints or one local and one remote setpoint. (models 89556-40 thru 89556-43)
PV hot start allows the controller to initialize the local setpoint at the current PV value upon power start up in the event of power loss.
Dual set tuning: configured PID parameters can be selected automatically based upon the PV or SP value.
Second input option provides a second linear voltage or current input.
Dual line LED with the capability of displaying multi-language configuration prompts. A 4 character upper display and a 6 character, 14-segment, alphanumeric lower display.
High/Low Limit Controller (model 89556-44) is designed to provide a safety shut-off and optional alarm. A latched relay output is activated when the process parameter either exceeds or falls below the desired value, providing a fail-safe cutoff which has to be manually reset before the process can continue. Features universal input and is FM approved.
Call our Application Specialists for more information on these products or to special order a controller with other options.
