Cole-Parmer DC1250-U02 2通道电子无纸记录仪，10/100BaseT以太网，100至240 VAC

Cole-Parmer DC1250-U02 2通道电子无纸记录仪，10/100BaseT以太网，100至240 VAC

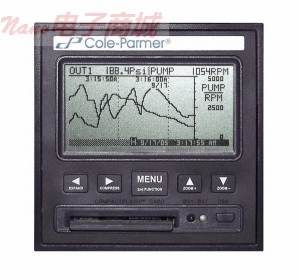

2 Channel Electronic Paperless Recorder, with 10/100BaseT Ethernet, 100 to 240 VAC

市场上最经济的双通道电子记录器

视图中的数据双重趋势,双数字,数字倒生的,或者分裂格式的筛选

用户界面配置，设置简单

这个电子数码无纸记录仪提供了两种普遍配置的隔离输入测量直流电压，直流电流，热电偶，热电阻，以及频率和脉冲输入。单位包括四个内部报警设定值，两个报警继电器输出，一个数字控制输入，每秒100个样本，可以设置两个通道让您捕捉短流程异常信号，最大采样存储率。

按钮菜单界面可简单设置，明亮的液晶显示屏易于阅读，并且可以配置数字或趋势的格式来显示实时数据。存储大量的数据（可达2 GB）与可选的闪存卡，USB通信模型（80816-02）提供了访问存储在CF卡中的数据或能够收集实时数据，通过USB接口，附带电线。选择以太网通信模型（80816-04），让您的网络访问数据卡文件利用10/100BaseT以太网通过RJ45连接器安装在记录仪后面。

可选的导航软件，可回顾，打印和导出数据，使用便捷。软件会自动启动Excel，转换历史数据，数据加载到一个有组织的电子表格连同显示尺度,日期和时间信息。

包括：导航精简版软件演示，电源供应器（100至240 VAC，50/60赫兹），和一个6英尺电源线。

The most economical two-channel electronic recorder on the market!

View data in dual trend, dual digital, digital inversed, or split screened formats

User-friendly interface makes configuration and setup simple

This electronic digital paperless recorder offers two universally configurable isolated inputs for measuring DC voltage, DC current, thermocouples, RTDs as well as frequency and pulse inputs. Unit includes four internal alarm setpoints, two alarm relay outputs, one digital control input, and a maximum sample storage rate of 100 samples per second that can be set for both channels allowing you to capture short process signal anomalies.

The pushbutton menu interface allows simple set up and the bright LCD display is easy to read and can be configured to display real-time data in digital or trend formats. Store large amounts of data (up to 2 gigabytes) with the optional Compact Flash cards.

USB communication model (80816-02) provides access to data stored on Compact Flash cards or the ability to collect real-time data via USB port and included cable. Select the Ethernet communication model (80816-04) allowing you network access to data card files utilizing 10/100BaseT Ethernet via the RJ45 connector mounted on the back of the recorder.

The optional Navigator software makes reviewing, printing and exporting your data simple. Software will automatically start up Excel, convert historical data, load data into an organized spreadsheet along with displaying scales, date and time stamp information.

Whats included: Navigator Lite software demo, power supply (100 to 240 VAC, 50/60 Hz), and a 6-ft power cord.
