英国 EUROTHERM Nanodac无纸记录仪

英国 EUROTHERM Nanodac无纸记录仪

AC-powered, two PID loops, dual setpoint programmer, Modbus master & EtherNet/IP Client/Server, one relay and two DC outputs

交流供电，两个PID回路，双设定点编程，Modbus主站和以太网/ IP的客户机/服务器，一个继电器和两个DC输出

高噪声抑制，高度精确过程测量

两个独立的PID控制回路的选项

安全，二进制数据(UHH)或打开数据文件（CSV）

4个通用输入通道125毫秒平行采样

14个额外的渠道用作数学函数，累加器或计数器

8 Hz采样和记录速率

高密度I/O

USB和以太网端口

通过按钮或iTools的软件简化配置，

水晶般清晰，全彩色显示屏

节省空间，1/4 DIN面板安装设计

nanodac无纸记录仪,在一个小巧的1/4 DIN面板上，显示安全记录数据，图形，以及可选的PID控制。全彩色3.5“TFT水晶般清晰的操作界面监测，控制过程。选择查看横向和纵向趋势，条形图或数值信息，并方便地显示报警状态和控制回路。四个前面板按钮视图之间简单滚动。

nanodac包含50 MB的非易失性闪存数据存储。所有过程数据不断记录这个内存和记录仪上，提供多个归档策略，以确保您的数据永不丢失。可自动归档数据到数据库，可拆卸的USB记忆棒，或以太网FTP站点。基于电脑工具支持记录仪功能，可在你任何需要的时候提取数据。iTools的软件（下载到www.eurotherm.com/products/controllers/itools）创建一个安全数据库，根据需要图表可回顾，打印和导出到其他电脑套件。所有的数据都是加密的二进制文件（UHH格式），并可以放到允许第三方数据备份的网络上。

选择两个独立的PIC控制回路，过程可靠控制。其功能包括一个最好的自动调谐设施以及抑制过冲（削减），电源波动，使用功率馈补偿和线性，风扇，油，水冷却。也可下载iTools软件，nanodac记录器/控制仪所创建的任何配置都可储存，脱机修改，克隆用于其他Eurotherm仪器，节省您的时间和金钱。

可选的碳氧化锆块，通常使用控制回路，用于控制在炉中的碳百分比。nanodac还可用来作为碳监视器。nanodac与消毒器块的拟用于与桌面消毒器保持和记录温度，在这个过程中，被集成到PLC处理清洗。型号70001-27 70002-43的可选消毒器或湿度块。

Highly accurate process measurements with high noise rejection

Option of two independent PID control loops

Secure, binary data (UHH) or open (CSV) data files

4 universal input channels with 125 ms parallel sampling

14 additional channels for use as math functions, totalizers or counters

8 Hz sample and recording rate

High-density I/O

USB and Ethernet ports

Simple to configure via push buttons or iTools software

Crystal-clear, full-color display

Space-saving, 1/4 DIN panel-mount design

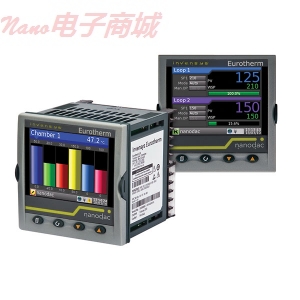

The nanodac paperless recorder features secure data recording, graphical display, and optional PID control—all in a compact 1/4 DIN panel-mount design. Full-color 3.5” TFT provides a crystal-clear operator interface for monitoring and process control. Choose to view your process information with horizontal and vertical trends, bar graphs or numeric values, and easily display the alarm status and control loops. Four front-panel push buttons allow simple scrolling between configured views.

Each nanodac contains 50 MB of nonvolatile Flash memory for data storage. All process data is continually logged to this memory and the recorder offers multiple archive strategies to ensure that your data is never lost. You can automatically archive data to a database, to a removable USB memory stick, or over the Ethernet via FTP site.

Recorder functionality is supported by PC-based tools to get data in the way you need it. iTools software (download from www.eurotherm.com/products/controllers/itools) creates a secure library for data from which charts can be reviewed, printed and exported to other PC packages as required. All data is encrypted in binary files (UHH format) and can be configured to run over the network which allows for a third data backup route.

Choose models with two independent PIC control loops for reliable control of your process. Functionality includes one of the best autotune facilities available along with overshoot inhibition (cutbacks); compensation for power fluctuations using power feedforward; and linear, fan, oil, and water cooling. Configuration is also done using the downloadable iTools software; any configuration created for a nanodac recorder/controller can be stored, modified offline, and cloned for use in other Eurotherm instruments, saving you time and money.

The optional carbon zirconia block, normally used with control loops, is used for percentage carbon control in furnace atmospheres; the nanodac can also be used as a carbon monitor.

The nanodac with sterilizer block is intended to be used with desktop sterilizers to maintain and recorder temperature during the process and is integrated with the PLC handling the cleaning.

See model numbers 70001-27 through 70002-43 for optional sterilzer or humidity block.

产品规格
产品类型	Nanodac无纸记录仪
控制输入​​（热电偶）	是
控制输入​​（RTD）	是
控制输出1	逻辑
控制输出2	中继
控制输出3	直流模拟
控制输出4	PID控制回路（X2）
显示	3.5“TFT
DIN尺寸	1/4“
符合CE认证	是
品牌	EUROTHERM
生产编号	NANODAC/VH/C/P/LRR/XX/TE/SV/XXXXX/ENG/XXX/XXXX/XXXXX/XX/XX
电源（VAC）	90至254

Specifications
Product Type	Nanodac paperless recorder
Control input (thermocouple)	Yes
Control input (RTD)	Yes
Control output 1	Logic
Control output 2	Relay
Control output 3	DC analog
Control output 4	PID control loops (x2)
Display	3.5" TFT
DIN size	1/4"
CE Compliance	Yes
Brand	EUROTHERM
Manufacturer number	NANODAC/VH/C/P/LRR/XX/TE/SV/XXXXX/ENG/XXX/XXXX/XXXXX/XX/XX
Power (VAC)	90 to 254
